Key Features :
- Real time video at VGA ( 640×480 )
- Adopt advanced video compression with high compression ratio
- Internal microphone
- Support PoE power supply
- Support dual streams, and the sub stream used for the mobile phone surveillance
- Impact protection : IEC60068-2-75 test, Eh, 50J; EN50102, exceeding IK10
- Advanced engineering design, 3-axis adjustment, and high reliability
Specifications :
| Model | MV-7120-VP-MD |

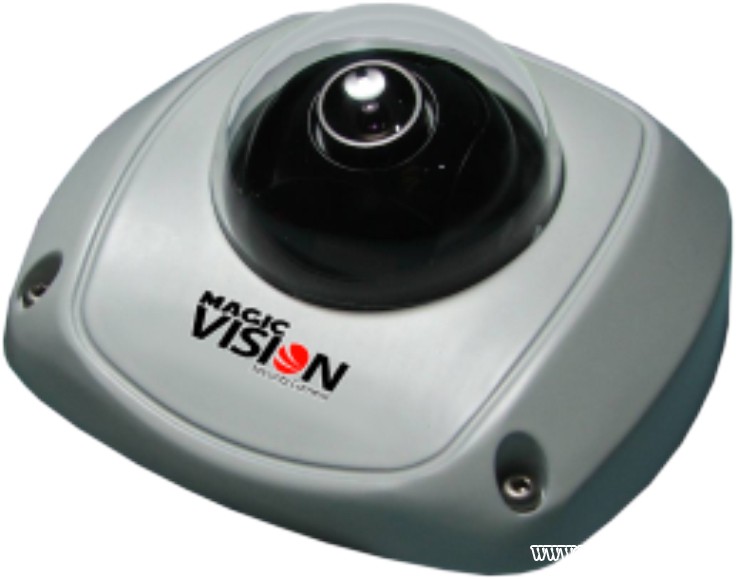

| Parameter | VGA Real-time CMOS Mini IP Vandal-proof Dome Camera |
| Image Sensor | 1/4 inch CMOS |
| Electronic Shutter | 1/25s ~ 1/100,000s |
| Min. Illumination | Color : 0.1 Lux @ F1.2 |
| B/W : 0.01 Lux @ F1.2 | |
| Lens | 4mm, F1.2 Fixed Iris ( 2.8, 6, 8mm optional ) |
|
Angle of View : 71″ |
|
| Day / Night | Electronic |
| Video Parameter | Saturation, Brightness, Contrast, Hue adjustable through client software or web browser |
| Adjustment Range | Pan ±15°, Tilt 0~90°, Rotation ±15° |
| Video Compression | H.264/Mpeg4/MJpeg |
| Bit Rate |
32 Kbps ~ 8 Mbps |
| Audio Compression | OggVorbis |
| Max. Image Resolution | 640 x 480 |
| Frame Rate | 30fps @ 640 x 480 |
| Storage | Support NAS, ISCSI |
| Intelligent Alarm | Motion Detection, Video Tampering, Video Loss, Network broken, IP Address conflict, Storage exception |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTCP. PPPoE, FTP, SMTP, NTP, SNMP, HTTPS, SIP, 802.1x, IPV6 |
| Basic | Initial Set button, Anti-Flicker, Dual Stream, Heartbeat, Password Protection, Watermark |
| 3-axis adjustment | Yes |
| Audio | Internal Microphone optional |
| Communication Interface | 1 RJ45 10M / 100M self-adaptive Ethernet port |
